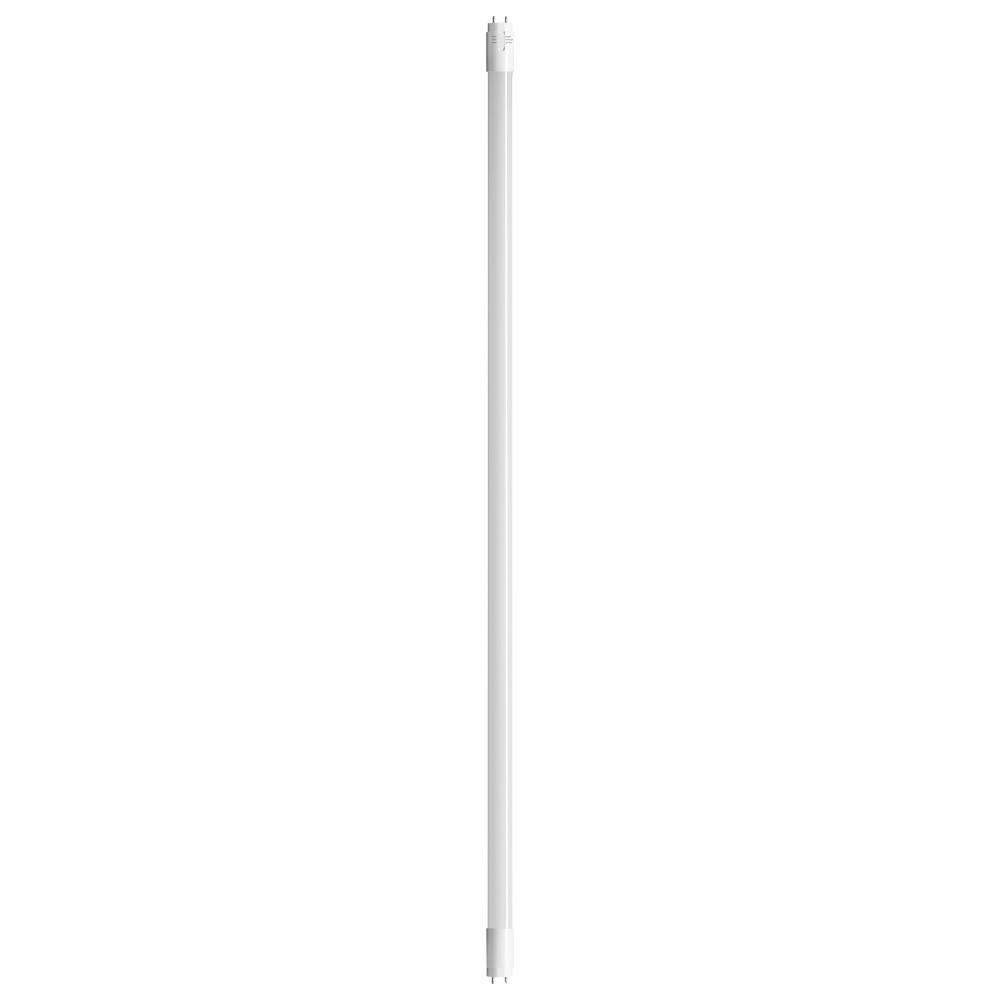

12.5 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type B; Ballast Bypass; 2PK : LNE2F

No Image
Available

Image may not reflect selected features

12.5 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type B; Ballast Bypass; 2PK (LNE2F)

12.5 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type B; Ballast Bypass; 2PK

Product Specification

Item #

LNE2F

Dimensions

Width: 1.00"

Additional product details

Category

LED

Sub-Category

LED T8

Volts

120V-277V

Bulb Hours

50000

Bulb Kelvin

4000K/5000K/6500K

Bulb Shape

Diameter

1.0

EA Length

2.75

Harmonized Codes

8539.52.0051

Length

47.78

Lumens

1800L

Shap Carton Width

1.5

Ship Carton Height

48.0

Ship Weight

0.53

Warranty

5-Years

Weight

0.47

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass

Beam Spread

220

Bulb ANSI Base

G13

Bulb Base

Medium Bi Pin

Bulb Finish

White

Burning Position

Universal

Carton Cubic Feet

0.1146

Cartons Per Unit

CCT Selectable

Yes

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Cool White to Daylight

Country Of Origin

Vietnam

CRI

80+

DLC Approved

Yes

DLC Classification

Standard

DLC ID

PAZ9CLH1

DLC Primary Use

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy

144.00 LPW

Enclosed Fixture Use

Yes

FCC Compliant

Yes

Feature 1

MOL: 48.00 inches, MOD: 1.00 inch

Feature 2

Superior 83 CRI light quality,1800 lumens and selectable CCT: 4000K, 5000K and 6000K with a 220 beam spread

Feature 3

Rated for enclosed fixtures

Feature 4

Damp rated, for indoor use only

Feature 5

12.5 watt LED replaces 32 watt fluorescent

Feature 6

White finished plastic linear lamp with white housing

Feature 7

DLC Certified and qualifies for rebates where available

Feature 8

5 year limited warranty

Flourescent Equivalent

32W

Has Camera

Has Emergency Battery

Housing Color

White

Incandescent Equivalent

70W

Indoor Outdoor

Indoor

Installation Notes

Not for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring

IOT Enabled

IP Rating

IP20

Lamp Ballast Type A/B/C

Type B

Lamp End Type

Single Ended;Double Ended

Lamp Filament

LED

Lens Finish

Frost

Lens Material

Glass

Location Rating

Damp

Long Description

SATCO NUVO's S11919 2 pack of 12.5 watt T8 4 foot LED G13 Type A ballast dependent CCT selectable double ended linear direct replacement bulbs with two installation options offers stock saving options in a versatile retrofit. The frosted white bulb fea

Material

Glass

Nominal Length

48.0

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Sleeve

Power Factor

0.9

Quantity In Pack

R9 Value

RoHS Compliant

Yes

Romance Copy

SATCO NUVO's 2 pack of 12.5 watt T8 4 foot LED G13 Type A ballast dependent CCT selectable double ended linear direct replacement bulbs with two installation options offers stock saving options in a versatile retrofit. The frosted white bulb features a

SDS class

LED_Lamp

Short Description

12.5T8/LED/48/840-850-865/BP/2

Style

Utility

Surge Protection

Built-in-surge protection - 0.7KV

Technology

LED

Title 20 Compliant

Exempt

Total Harmonic Distortion

20%

Tube Guard Use

Wattage Selectable

Watts

12.5W
