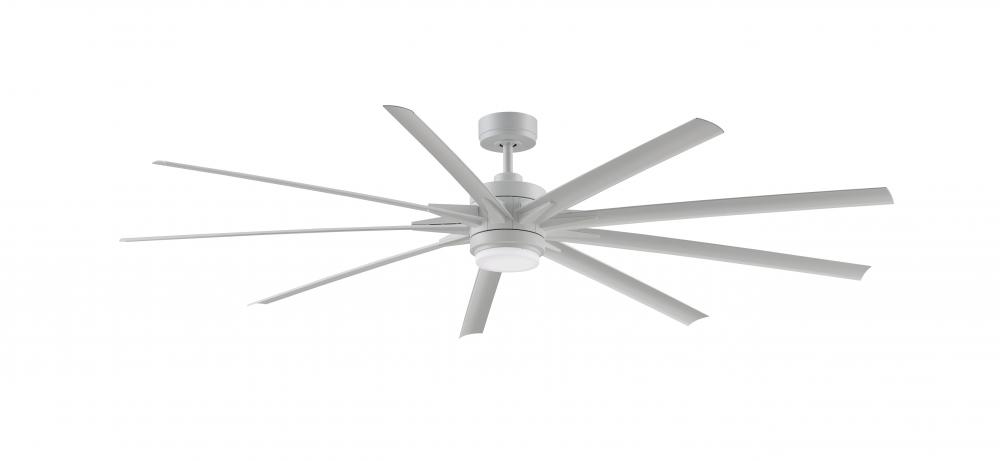

Odyn - 84 inch - MWW with MW Blades and LED LK (G81D)
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Specification
Item #
G81D
Dimensions
Height: 22.63"
Width: 84.00"
Length: 84.00"
Additional product details
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
White
Style
Traditional
Option
Energy Efficient
, Energy Star
, Outdoor
, Wet Rated
, LED
, Prop 65
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
8 Plus Blades
Location Rating
Wet Rated
Wattage
18w
Finish
Matte White
Option
Energy Efficient
, Energy Star
, LED
, Outdoor
, Prop 65
Family
Odyn 84
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow CFM
11363
Air Flow Efficiency
328
Blade Finish
Matte White
Blade Pitch
12
Blade Span
84
Bulb Type
LED Module
Canopy
6.46 Dia x 2.58 H
Harmonized Codes
8414.51.3000
Kelvin
3000/4000/5000
Light Kit Included
Yes
Lumens / Light Output
1600
Motor Size
135L
Motor Type
DC
Ship Carton Height
12.91
Ship Carton Length
39.96
Ship Carton Width
10.43
Ship Weight
37.49
Sold By
Each
Warranty
Limited Lifetime
Weight
33.74
Airflow Efficiency Low
1179
Airflow Efficiency Medium
648
Avg Airflow Efficiency
339
Avg CFM Energy
7949
Avg Energy Use
23
Avg Estimated Yearly Energy Cost
7
Avg Estimated Yearly Energy Cost on HIGH
10
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
84
Bulb Base
Connector Pin
Bulb CRI
90
Cap Included
Yes
Carton Cubic Feet
3.11
Case Height
12.91
Case Length
39.96
Case Quantity
1
Case Weight Pounds
37.49
Case Width
10.43
CEC Uploaded
Yes
Ceiling To Blade Edge
18.83
Ceiling To Bottom (No Light Kit)
22.32
Ceiling To Bottom (With Light Kit)
22.63
CFM Low
4694
CFM Medium
8272
Country of Origin
China
Current Draw High
0.49
Current Draw Low
0.07
Current Draw Medium
0.2
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
12
Energy Efficient
Yes
Energy Star
Yes
Exempt from DOE Procedure
No
Housing Diameter
8.27
Included Control
TR305
Included Control Type
Handheld
Indoor
Yes
Leadwire
80
LED
Yes
Location Rating
Wet Rated
Max Ceiling Slope
27
Max Wattage
18
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
9
Number Of Speeds
16
Outdoor
Yes
Prop 65
Yes
Prop 65 Description
This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
70
RPM Low
30
RPM Medium
51
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts High
35
Watts Low
4
Watts Medium
13
Other Details:
- CONTROL: Use your smart home device with our fanSync app, or use the included TR305 hand-held remote with two 3V CR2032 batteries.
- FINISH: Matte White ceiling fan from the Odyn Collection features 9 Matte White blades
- INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod.
- LIGHTING: Includes integrated 18-watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology, providing a selection of light colors ranging from warm white, bright light or daylight with opal frosted glass shade
- LOCATION: Wet Rated for indoor and outdoor use in wet locations, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
- Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow
- POWER: The 16-speed, quiet, and energy efficient DC Motor provides airflow up to 11,363 CFM
- Push buttons control 16 variable fan speeds, light levels, CCT Select, timer, powering on/off, and fresh air, reverse, home away, safe exit modes
- SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
- TECHNOLOGY: Correlated Color Temperature (CCT) Select Technology, provides a selection of light colors ranging from warm white, bright light or daylight and WiFi fanSync, which provides fan control with a smart device or voice assistant
- WARRANTY: Limited lifetime
