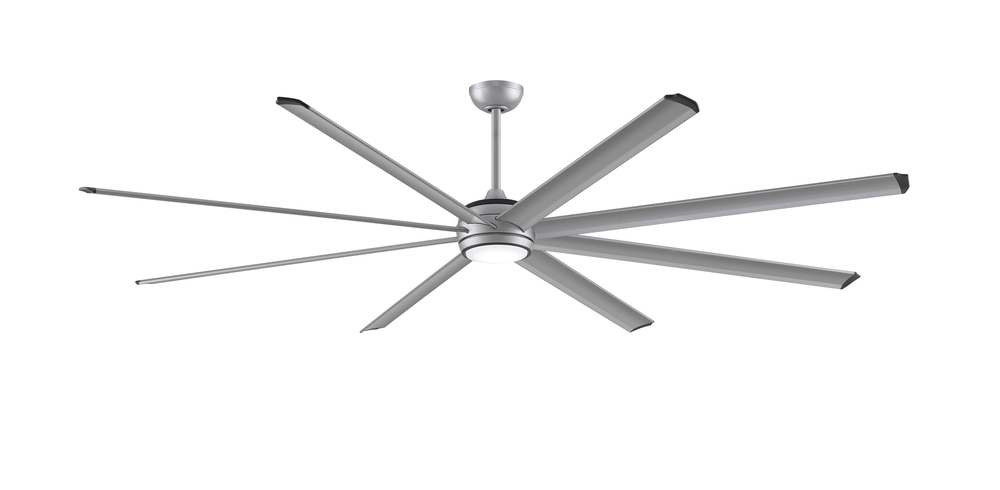

Stellar 96 Indoor/Outdoor Ceiling Fan DC Motor with LED CCT Select Light Kit - Silver
Image may not reflect selected features
Stellar 96 Indoor/Outdoor Ceiling Fan DC Motor with LED CCT Select Light Kit - Silver (G81Z)
Incredible in size and function, the Fanimation Stellar reigns supreme with swift aluminum blades. Showcasing a full 96 inch blade span, Stellar features an integrated LED with CCT Select Temperature settings light kit, and is safe for use in wet locations. Pick the combination that matches your decor, between black and silver finishes. Stellar features fanSync technology so that users may control various fan functionalities with their the Fanimation fanSync app. *Blades sold separately
Downloads
Product Specification
Item #
G81Z
Dimensions
Height: 20.61"
Width: 96.00"
Length: 96.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Silver
Style
Traditional
Option
Energy Star , Outdoor , Wet Rated , LED
Voltage
100-120
Glass Finish or Style
Frosted , Opal
Number of Blades
8 Plus Blades
Kelvin
4501-5000
Location Rating
Wet Rated
Wattage
18w
Category
Motor
Finish
Silver
Option
Energy Star , LED , Outdoor
Family
Stellar 96
Voltage
120 V
Shade
Opal Frosted
Number of Bulbs
1 Bulbs
Air Flow CFM
12965
Air Flow Efficiency
371
Blade Pitch
12.6
Bulb Type
LED Module
Canopy
6.3 Dia x 2.55 H
Harmonized Codes
8414.51.3000
Kelvin
3000, 4000, 5000
Light Kit Included
Yes
Motor Size
153 x 25
Motor Type
DC
Ship Carton Height
10.75
Ship Carton Length
19.49
Ship Carton Width
11.42
Ship Weight
21.23
Sold By
EA
Warranty
Limited Lifetime
Weight
18.89
Airflow Efficiency Low
1220
Airflow Efficiency Medium
562
Avg Airflow Efficiency
418
Avg CFM Energy
9770
Avg Energy Use
23
Avg Estimated Yearly Energy Cost
7
Avg Estimated Yearly Energy Cost on HIGH
10
Bulb Base
Connector Pin
Bulb CRI
90
Cap Included
Yes
Carton Cubic Feet
1.38
Case Height
10.75
Case Length
19.49
Case Quantity
1
Case Weight Pounds
21.23
Case Width
11.42
CEC Uploaded
No
Ceiling To Blade Edge
18.61
Ceiling To Bottom (No Light Kit)
20.61
Ceiling To Bottom (With Light Kit)
20.61
CFM Low
6148
CFM Medium
10513
Country of Origin
China
Current Draw High
0.55
Current Draw Low
0.1
Current Draw Medium
0.3
DOE Classification
Large Diameter
DOE-FTC Uploaded
No
Downrod Length
12
Energy Star
Yes
Exempt from DOE Procedure
Yes
Fan Energy Star 4
No
Housing Diameter
9.21
Included Control
TR305
Included Control Type
Handheld
Indoor
Yes
Leadwire
80
LED
Yes
Light Kit Energy Star 4
No
Location Rating
Wet Rated
Max Ceiling Slope
27
Max Wattage
18 W
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
8
Number Of Speeds
16
Outdoor
Yes
Prop 65 Description
This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
60
RPM Low
29
RPM Medium
49
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts High
35
Watts Low
5
Watts Medium
19


Other Details:
  • 12,965 Cfm On High
  • 18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (8) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
  • Compatible with most smart home devices using the Fanimation fanSync WiFi App
  • Dc Motor With Variable Speeds, Light Controls, Sleep Timer, Fresh Air, Safe Exit, Home Away Features
  • Energy Star Most Efficient 2020
  • Tr305 Handheld Remote With 23a Battery Included
